Ultimate Guide to LSTM in PyTorch

Understanding LSTMs in PyTorch

The LSTM (Long Short-Term Memory) model is a popular recurrent neural network (RNN) architecture used for time series forecasting and sequential data processing. In this article, we will explore how to implement an LSTM model using PyTorch and understand its components like hidden state and cell state.

Components of LSTMs

An LSTM consists of several key components:

• Input gate: Controls the flow of input into the memory.
• Cell state: Represents the long-term memory of the network.
• Hidden state: Represents the short-term memory.

Each LSTM cell processes input sequences over time steps, maintaining the hidden state and cell state across these steps.

Implementing LSTMs in PyTorch

To implement an LSTM network in PyTorch, we start by importing the necessary libraries:

import torch
import torch.nn as nn

Next, we define our LSTM layer:

class LSTMModel(nn.Module):
    def __init__(self, input_size, hidden_size, output_size):
        super(LSTMModel, self).__init__()
        self.lstm = nn.LSTM(input_size, hidden_size, batch_first=True)
        self.fc = nn.Linear(hidden_size, output_size)

This LSTM model takes an input sequence and processes it through the LSTM layer to produce an output sequence.

Training the Model

During training, we feed in time series data to the model and compute losses based on output predictions:

model = LSTMModel(input_size=1, hidden_size=50, output_size=1)
loss_function = nn.MSELoss()
optimizer = torch.optim.Adam(model.parameters(), lr=0.01)

We can train the model by iterating through the input sequence and optimizing the model performance based on the loss.

Conclusion

By using Pytorch, you can efficiently implement and train LSTMs for various regression problems involving sequential data. For more information, refer to the GitHub repository for Pytorch tutorials on implementing recurrent neural networks.

LSTM in PyTorch

The LSTM (Long Short-Term Memory) is a type of recurrent neural network (RNN) used extensively in deep learning for sequence prediction tasks. In this guide, we will explore how to implement an LSTM model using PyTorch.

Understanding LSTMs

An LSTM cell consists of three main components: the hidden state, the cell state, and the input gate. The hidden state carries information from the previous time step, while the cell state maintains long-term dependencies.

Implementing LSTM in PyTorch

To create an LSTM layer in PyTorch, you can use the following code snippet:

import torch.nn as nnclass LSTMModel(nn.Module):def __init__(self,input_size,hidden_size,output_size):super(LSTMModel,self).__init__()self.lstm=nn.LSTM(input_size,hidden_size,batch_first=True)self.fc=nn.Linear(hidden_size,output_size)def forward(self,x):out,_=self.lstm(x)return self.fc(out[:,-1,:])

This lstm network processes sequential data and predicts the next value in a sequence. Each input sequence is passed through the LSTM, and the output is generated at the last time step.

Training the Model

During training, you will use a loss function to measure the difference between the predicted output and the actual data points. You can optimize the model using backpropagation through time, updating the hidden state and cell state accordingly.

Example Use Case: Time Series Forecasting

LSTMs are particularly effective for time series forecasting. By feeding historical data points into the LSTM, the model can learn dependencies over time steps and forecast future values.

For more detailed examples and discussions, you can visit the GitHub repository for PyTorch tutorials and community support.

Torch: Build Sequence Models Using PyTorch



Welcome to the ultimate guide on implementing Long Short-Term Memory (LSTM) networks using PyTorch. This tutorial will provide a comprehensive overview of LSTMs, their architecture, and practical implementation using PyTorch. We'll explore various applications, including time series forecasting and text classification, to equip you with the knowledge to build powerful sequence models.

Introduction: Why LSTMs are Essential for Sequence Prediction



The Limitations of Traditional RNNs

Traditional Recurrent Neural Networks (RNNs) struggle to capture long-range dependencies in sequential data due to the vanishing gradient problem. As information flows through multiple time steps, gradients diminish, hindering the network's ability to learn connections between distant elements in the input sequence. This limits their effectiveness in tasks where context is crucial.

Understanding LSTMs and Their Role in Sequence Modeling

LSTMs offer a solution to the vanishing gradient issue, making them exceptionally well-suited for sequence modeling. Their unique architecture allows them to effectively learn and retain information over extended sequences. LSTMs use a gated mechanism to regulate the flow of information, enabling them to capture dependencies and make accurate predictions.

Overview of Long Short-Term Memory Networks

Long Short-Term Memory networks (LSTMs) are a specialized type of RNN designed to handle long-range dependencies. The core component of an LSTM is the LSTM cell, which contains a cell state to preserve information and gates that control the flow of data. This architecture enables LSTMs to selectively remember or forget information, improving their ability to model sequences.

Deep Dive: The Architecture of LSTM Networks



The Components of LSTM: Gates and Cell States



The LSTM cell relies on several key components working in concert to manage information flow. These components contribute to the LSTM's ability to retain relevant data and discard irrelevant data, making it effective for sequence modeling. The key components include:

Component	Function
Input Gate	Regulates the flow of new information into the cell state.
Forget Gate	Determines what information to discard from the cell state.
Output Gate	Controls what information is output from the LSTM cell.
Cell State	Stores and updates information over time.



How LSTM Addresses the Vanishing Gradient Problem

LSTMs address the vanishing gradient problem through their unique architecture, specifically the cell state and gated mechanisms. The cell state acts as a "memory highway," allowing gradients to flow more easily through the network. The gates, which are the input gate, forget gate, and output gate, control the flow of information and help mitigate the vanishing gradient issue.

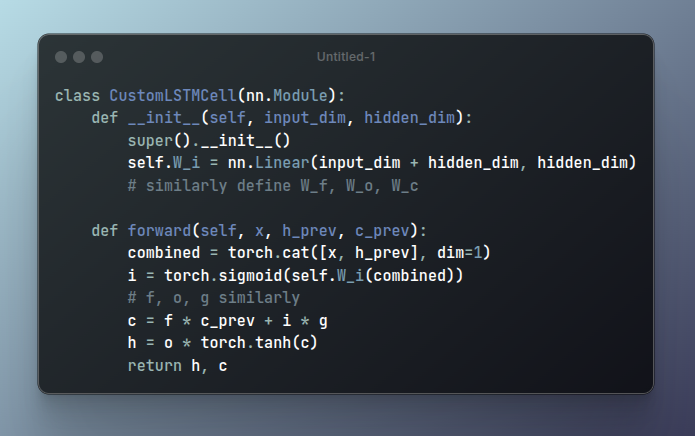

The Gated Mechanism: Memory Management in LSTMs

The gated mechanism in LSTMs is what allows them to effectively manage memory. The input gate decides what new information to store in the cell state, the forget gate determines what information to discard, and the output gate controls what information to output as the hidden state. These gates are crucial for effective sequence modeling using PyTorch.

Implementing LSTM Models Using PyTorch



Key Parameters for nn.LSTM: A Practical Guide

Understanding the key parameters `input_size`, `hidden_size`, and `num_layers` in `nn.LSTM` is crucial for successful sequence modeling. The `input_size` defines the expected number of features in the `input` at each `time step`. The `hidden_size` determines the number of features in the `hidden state` `dimension`. Lastly, `num_layers` specifies the number of recurrent layers.

Understanding Tensor Shapes for LSTM Implementation

Understanding tensor shapes is crucial when working with `LSTM in PyTorch`. The input sequence tensor should have a shape of (L, N, H_in) or (N, L, H_in) when `batch_first` is True. The `hidden state` and `cell state` tensors have shapes (D*`num_layers`, N, H_out) before the `forward pass`.

Initializing Hidden and Cell States in PyTorch

Before the forward pass through an LSTM, it's essential to properly initialize the hidden state and cell state, usually with zeros. Their shapes should match (D*`num_layers`, N, H_out), where D is 2 if `bidirectional` is True, and 1 otherwise. Failing to initialize these states can lead to unstable training.

Practical Implementation: Time Series Prediction with LSTMs



Data Preparation: Creating Sequences for Time Series

Preparing time series data for `LSTM`s involves transforming the raw data into sequences suitable for `LSTM in PyTorch`. This typically involves creating overlapping input sequences with a fixed length (lookback window). Normalization or scaling is crucial to ensure stable training.

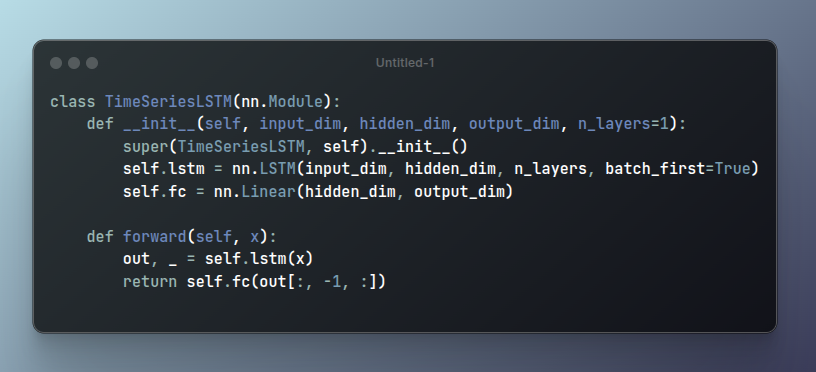

Building an LSTM Model with nn.Module

Building an `LSTM model` with `nn.Module` involves defining a custom class that inherits from `nn.Module` and encapsulates the `lstm layer` and any other necessary layers, such as linear layers for regression. The `self.lstm` layer is initialized with `input_size`, `hidden_size`, and `num_layers`. The `forward pass` method defines how the input data flows through the `LSTM network`.

Training the LSTM: Loops and State Management

Training an `LSTM in PyTorch` involves iterating through the data, computing the loss, and updating the parameters. Critically, you should detach the hidden state and cell state at each `time step` to prevent backpropagation through the entire sequence, which can lead to memory issues.

Advanced Applications: LSTMs for Text Prediction



Data Preprocessing: From Text to LSTM Input

Preprocessing text for `LSTM`s involves tokenization, creating a vocabulary, mapping tokens to indices, and converting sequences of indices into tensors. An `nn.Embedding` layer is then used to transform these indices into dense vector representations. Padding may be necessary.

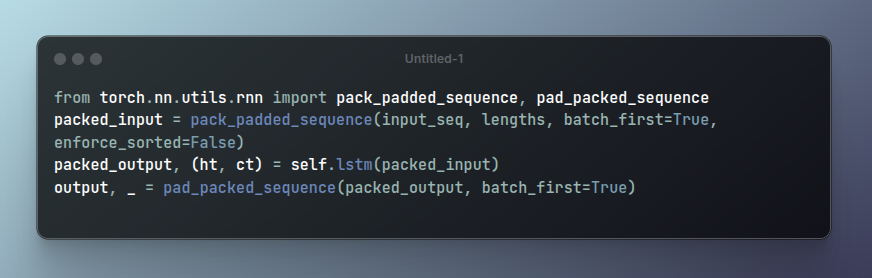

Handling Variable-Length Sequences in NLP Tasks

To handle variable-length sequences, PyTorch provides `nn.utils.rnn.pack_padded_sequence` and `pad_packed_sequence` for efficient computation. `pack_padded_sequence` removes padding before feeding into the `lstm layer`, and `pad_packed_sequence` restores it after processing.

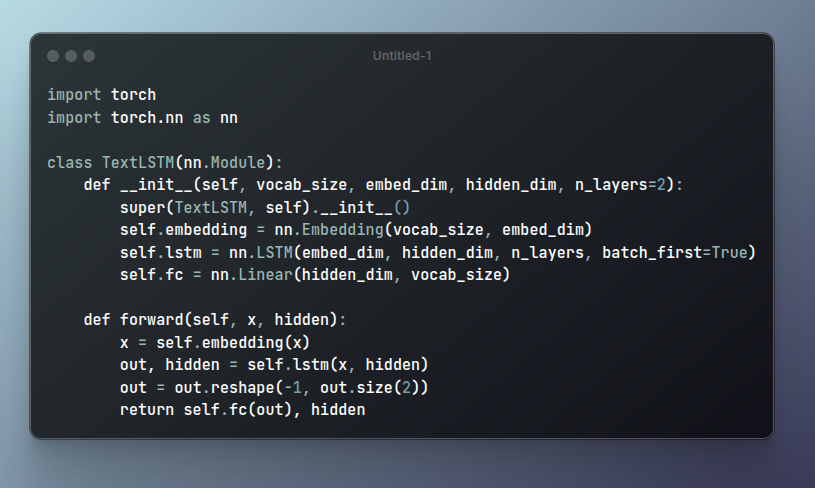

Model Architecture for Text Classification Using LSTMs

For text classification, the `LSTM model` typically involves an `nn.Embedding` layer followed by one or more `lstm layer`s. The final hidden state of the `LSTM` is then fed into a linear layer to produce classification outputs. `nn.CrossEntropyLoss` is commonly used as the loss function.

Troubleshooting Common Issues with LSTM Models



Identifying and Fixing Common Errors in LSTM Implementation

Common errors include shape mismatches between tensors, forgetting to call `model.train()` or `model.eval()`, and data/model being on different devices. Double-checking shapes and ensuring correct device placement are crucial.

Best Practices for Optimizing LSTM Performance

Optimizing `LSTM` performance involves using appropriate initialization schemes, experimenting with different optimizers and learning rates, and applying regularization techniques like dropout. Additionally, using gradient clipping can help stabilize training.

Advanced Techniques: Bidirectional and Stacked LSTMs

Bidirectional `LSTM`s process the input sequence in both forward and backward directions, while stacked `LSTM`s involve stacking multiple `lstm layer`s, increasing the `model`'s capacity. These can be implemented by setting `bidirectional=True` and increasing `num_layers` in the `nn.LSTM` constructor.

Conclusion: Next Steps for Mastering LSTMs in PyTorch



Comparing LSTMs with Other Sequence Models

`LSTM`s are powerful, but other sequence models exist, like GRUs and Transformers. Choosing the right architecture depends on the specific task, dataset size, and computational resources.

Future Trends: The Evolution of Sequence Modeling

The field of sequence modeling is constantly evolving. Transformers and attention mechanisms are increasingly prevalent. Understanding these trends is crucial for staying at the forefront of sequence modeling research and practical applications.

References and Further Reading



Credible Sources for LSTM and PyTorch

For in-depth information on `LSTM`s and `PyTorch`, consult the official `PyTorch` documentation (pytorch.org/docs) and original research papers on `LSTM`s.

Noteworthy Research Papers and Documentation

Several noteworthy research papers provide further insights into `LSTM`s and related topics. Explore papers on attention mechanisms and Transformers, such as "Attention is All You Need," to understand alternative approaches to sequence modeling that are compatible with `PyTorch`.
